14 PIN CONNECTOR
₹100
/ Pcs.
Where to Install: It is soldered directly onto the carriage interface board, printhead adapter boards, or the internal circuitry of individual capping/encoder sensor stations to receive 14-way ribbon data lines.
Hardware Compatibility: Widely used in multi-head configurations utilizing popular desktop and large-format printing assemblies including Epson, Mimaki, Roland, Mutoh, and various industrial Chinese printer brands.
Functionality: Transmits micro-voltage firing commands, data clocks, ground lines, and sensor feedback loops necessary for precision ink droplet placement.
Where to Install: It is soldered directly onto the carriage interface board, printhead adapter boards, or the internal circuitry of individual capping/encoder sensor stations to receive 14-way ribbon data lines.
Hardware Compatibility: Widely used in multi-head configurations utilizing popular desktop and large-format printing assemblies including Epson, Mimaki, Roland, Mutoh, and various industrial Chinese printer brands.
Functionality: Transmits micro-voltage firing commands, data clocks, ground lines, and sensor feedback loops necessary for precision ink droplet placement.
| Technical Parameter | Specification Details |
| Product Name | 14-Pin FFC/FPC Flat Cable Board Connector |
| Pin Configuration | 14 Pins / 14-Way Electrical Channels |
| Pitch Spacing Options | 0.5mm / 1.0mm (Standard industrial specifications) |
| Material (Housing) | High-Temperature LCP / Nylon Thermoplastic (UL94V-0 Rated) |

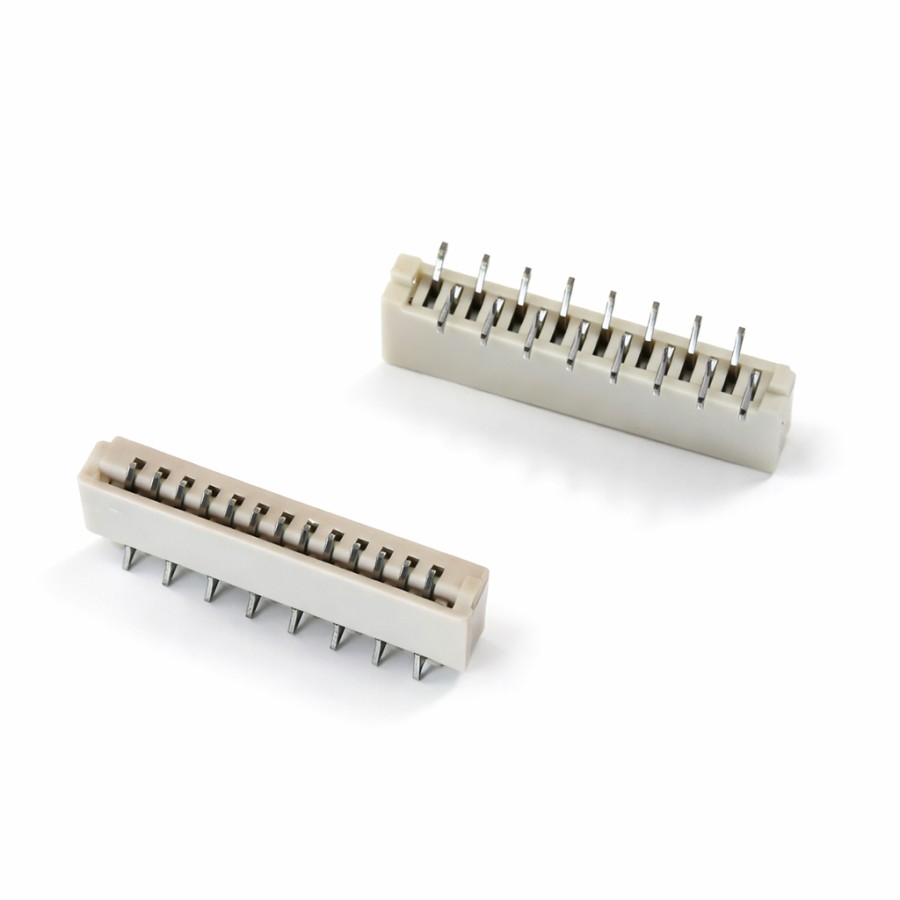

The 14-Pin Connector (Printhead Data Connector / Flat Flexible Cable Interface) is a vital, high-precision electronic spare part designed for the signal routing networks of digital inkjet printing machinery. This component acts as the primary electrical junction between the main printhead driver board (carriage board) and the flat flexible cables (FFC) that carry high-frequency firing pulses directly to the printhead nozzles.
